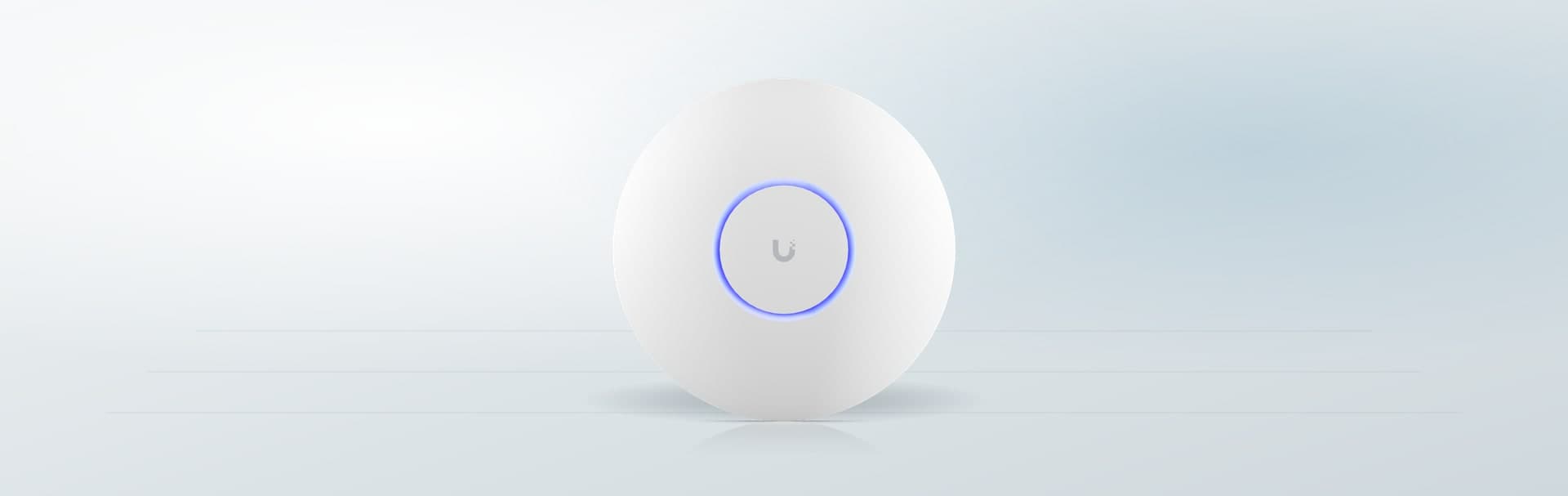

UniFi U7 Pro Review & Setup Tips (Installer’s Perspective)

Quick summary

U7 Pro is a strong Wi‑Fi 7 AP for those who want controller visibility and tuning. With wired backhaul and careful placement, it delivers consistent multi‑gig local throughput.

• Best Wi‑Fi 7 mesh systems (2025)
• Wi‑Fi 7 speed tests & placement

Setup tips

• Adopt on latest controller; update firmware after backup
• Prefer Ethernet backhaul with PoE; label runs and ports
• Start with moderate transmit power; avoid channel overlap
• Verify roaming and sticky client behavior with a walk test

Who U7 Pro is for

Choose U7 Pro when you want controller visibility, VLANs, and per‑band tuning with reliable PoE ceiling APs. Great for prosumers, small offices, and homes that value control and growth headroom.

If you prefer a very simple app and minimal tuning, Eero may be easier. If price/performance is the priority with a friendly app, compare Deco kits.

• Best for: control/visibility, VLANs, multi‑AP designs
• Backhaul: wired (2.5G uplink where feasible)
• Good fit in: plaster/stone homes when placed in corridors/ceilings

Step‑by‑step setup flow

1) Backup controller and update to current release. 2) Connect U7 Pro to PoE switch, wait for discovery, adopt, and update firmware. 3) Create SSIDs, enable 6 GHz where clients benefit, and set channel widths conservatively. 4) Walk‑test and adjust power/min RSSI.

Backhaul and switching (what stabilizes speeds)

Backhaul is the foundation. In Westchester plaster homes we wire primary and busiest branches and use 2.5G uplinks where local transfers or multi‑gig WAN justify it.

Recommended controller defaults

• Channel width: 40 MHz on 5 GHz; 80/160 MHz on 6 GHz where stable
• Power: low‑to‑medium indoors; avoid overlapping loud APs
• Minimum RSSI: start around -70 dBm to discourage sticky roaming
• Band steering: prefer 5/6 GHz; leave 2.4 GHz for legacy/IoT
• Client limits: cap per‑AP if density causes contention

Our test results (installer notes)

On wired backhaul with 2.5G uplink, we measured stable multi‑gig local transfers near‑room and consistent >1 Gbps mid‑room through typical drywall. In plaster‑and‑lath, careful corridor placement preserved roaming without sticky clients.

We favored 40 MHz on 5 GHz for dense neighborhoods; 160 MHz on 6 GHz only after confirming DFS stability and client support.

Roaming and client tuning (deep dive)

Sticky roaming is often a power and threshold problem. We start with modest transmit power on 5/6 GHz, enable 802.11k/v, and set a conservative minimum RSSI so devices let go before calls start to stutter.

In multi‑story homes, we bias ceiling APs above corridors and avoid blasting from rooms where people linger. This shortens contention windows and reduces retries, which you feel as snappier app loads and cleaner video calls.

Security features and throughput

IDS/IPS and traffic inspection reduce peak throughput on many gateways. We size the gateway to pass your ISP tier with necessary protections enabled and verify under load so surprises don’t appear after go‑live.

Benchmarks (typical scenarios)

Checklist

• Wire primary and busiest branches; label ports
• Use 2.5G uplinks where NAS or multi‑gig WAN exist
• Start narrow on channels; widen only after validation
• Walk‑test near/mid/far and adjust min RSSI
• Document AP names, ports, and a simple floor map

Pros and cons

• + Controller visibility, VLANs, and tuning
• + Consistent performance with wired backhaul
• – Requires PoE switching and some setup know‑how

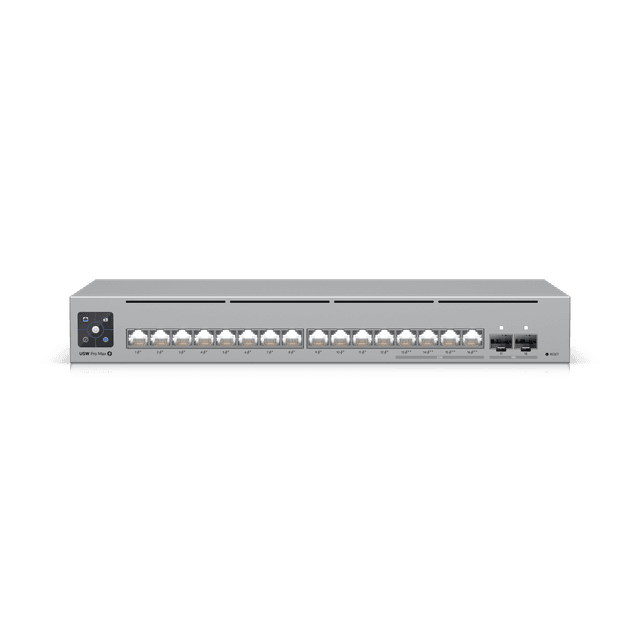

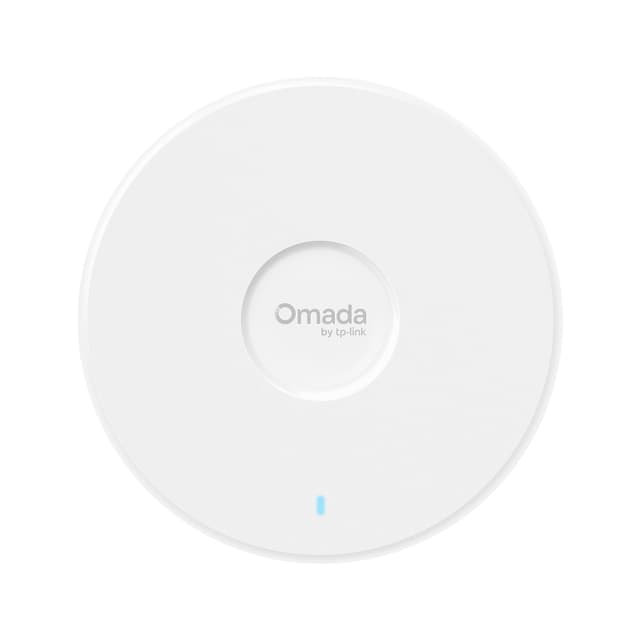

Recommended gear

Troubleshooting cues

• High retries? Reduce channel width and power; re‑place nodes
• Sticky clients? Enable 802.11k/v and nudge min RSSI
• Bumpy calls? Wire backhaul and verify upload consistency

FAQs

Next steps

Need a clean deployment with predictable results? We can survey, wire backhaul where it helps, and hand off a simple settings sheet.
