Install a wired Samsung The Frame by planning blocking, power, conduit, One Connect ventilation, and viewing height before the wall is closed.
- The classic Samsung The Frame still uses a wired One Connect box, while Frame Pro adds a different power plan because Wireless One Connect is only supported on that model family.
- For the standard living-room setup, mount the screen so its center lands about 42 to 44 inches above the floor.
- Our default rough-in uses horizontal blocking, a recessed power solution, and 1.5- to 2-inch flexible conduit so the One Connect cable can be serviced later.
- A 17-inch recessed enclosure is the safer default when you want to hide the One Connect box cleanly and preserve ventilation and connector access.
- If the TV is going over a mantel, treat that as a separate viewing-angle problem instead of reusing normal seated-height guidance.
This guide covers the standard wired Samsung The Frame install path used on current Frame models. Samsung's Frame Pro adds Wireless One Connect, but the TV and box still need separate power and the wireless path should not be planned like a hidden in-wall cable run.
How to Prepare a Wall for a Samsung Frame Installation
Install horizontal blocking between studs and map conduit paths before drywall closes to secure the Slim Fit mount and hide wiring.
Our default rough-in uses horizontal 2x4 blocking at the mount zone, then a photo record of stud locations, fire blocks, plumbing, and cable routes before the wall is closed. That record matters later when someone wants to swap the TV, open the wall, or service a bad run without exploratory holes.
Use a laser level and painter's tape to mock up the screen, bezel, sconces, and nearby frames before the electrician or drywall team leaves. The Frame only looks convincing when the whole composition is centered around the seating plan, not just around an empty wall.
Leave clearance for bezel changes, cable egress, and hand access at the mount. Tight cabinet returns, beams, and stone surrounds can make a flush mount harder than the TV spec sheet suggests.
Routing Power and the Samsung One Connect Cable
Run the proprietary One Connect cable through an in-wall flexible conduit to a ventilated recessed box or nearby media cabinet.
Bring power to the TV location with a code-compliant recessed receptacle or a properly installed in-wall power kit, then keep the One Connect box off the back of the display unless the enclosure was chosen specifically for it. In our field work, 1.5- to 2-inch flexible conduit is the practical target because it gives the connector head and a pull string enough room to move without fighting a sharp bend.
Terminate the One Connect box in a ventilated recessed enclosure or on a stable shelf in a nearby cabinet. Label every HDMI and network drop, leave a short service loop, and keep the box accessible enough that someone can swap a streamer or re-seat a cable without pulling the TV.
If the system includes a surge protector or UPS, place it near the One Connect box instead of behind the TV. The goal is one clean cable path up the wall, not a pile of power bricks fighting for depth.
| Reference point | Current guidance | Why it matters |
|---|---|---|
| One Connect box size on current wired Frame product pages | 13.7 x 2.6 x 5.4 in | This is the dimension that drives enclosure and shelf planning. |
| Recommended conduit size for serviceable installs | 1.5 to 2 in flexible conduit | This gives the cable head a cleaner pull path for future swaps. |
| Default recessed enclosure we would spec first | Legrand On-Q ENP1700NA 17-inch enclosure | It gives cleaner fitment and connector access than smaller boxes. |
| Tight-space option | Legrand ENP0900NA 9-inch enclosure | It can work, but clearances are tighter and side-port access is less forgiving. |
| Living-room center height | 42 to 44 in from finished floor | This keeps the screen near seated eye level in most primary seating layouts. |
How High Should a Samsung Frame TV Be Mounted?
Mount the TV so the center of the screen sits at seated eye level, which is typically 42 to 44 inches from the floor in a living room.
That number is a baseline, not a religion. Adjust for unusually low sofas, raised seating platforms, or rooms where the main view comes from a kitchen stool or banquette instead of a couch.
Treat over-fireplace installs as a separate design decision. If the TV has to clear a mantel, use a mount and seating plan that addresses downward viewing angle instead of pretending it is a normal-height installation.
- Keep mantel depth, surround material, and heat exposure in the measurement set before you pick the final height.
- If the room depends on an over-mantel placement, test sight lines from the real seats instead of using a generic center-height rule.
- When the only workable wall is high, tilt and viewing-angle correction matter more than chasing a flush-photo aesthetic.

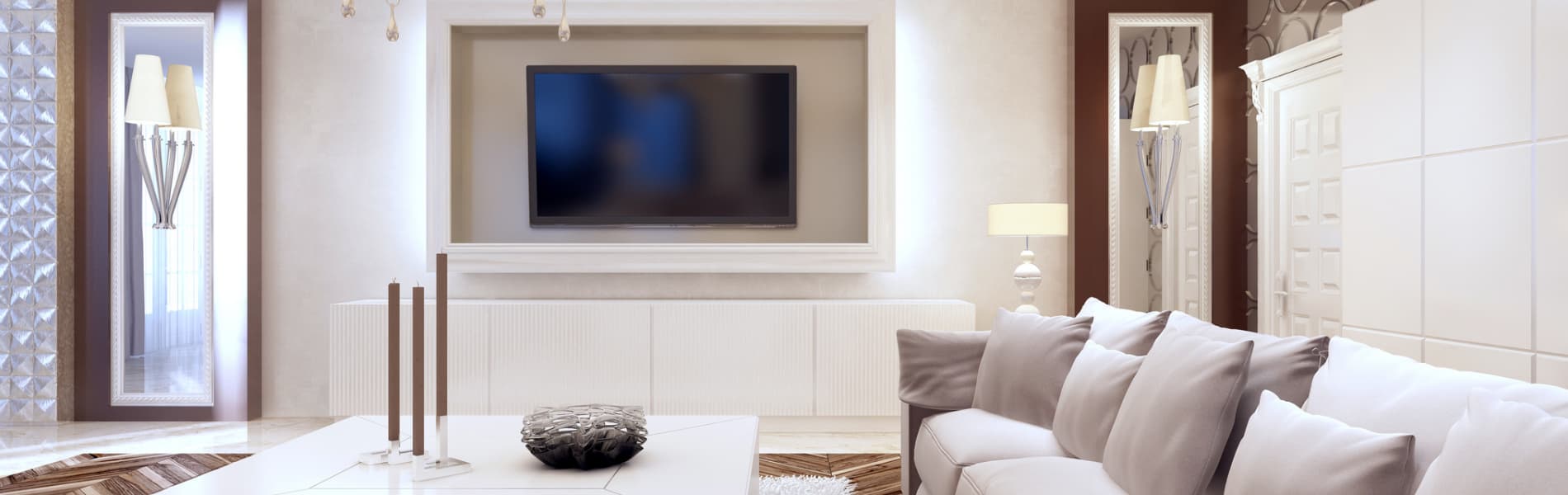

How to Make the Frame Look Like Art Instead of a TV
Match the Frame's bezel, lighting, and surrounding pieces so the matte screen reads like part of the wall instead of a black rectangle with a slideshow.
Start with the art itself. Use high-resolution pieces with similar tonal range and framing language so the TV does not become the only high-contrast object on the wall. Samsung's Art Store is useful for rotation, but personal photography and commissioned scans often blend better when the room already has a clear design direction.
Lighting changes the illusion more than most buyers expect. In traditional rooms, 2700K sconces and lamps usually make the matte panel feel warmer and closer to canvas. In cleaner modern spaces, 3000K can work well, but only if nearby artwork is lit to the same color temperature instead of mixing warm and cool sources in one composition.
Match glare behavior across the whole wall. If the Frame has a matte surface and the surrounding art uses glossy glass, the TV will look more convincing than the objects meant to disguise it.
- Build a few art playlists for daily use, holidays, and guest mode so the wall feels curated instead of random.
- Document the selected bezel finish and the preferred art settings in the client handoff packet.
Audio Options for a Clean Samsung Frame Setup
Use a compact soundbar or architectural speakers when the room needs better audio without breaking the gallery-wall composition.
Beam works well in smaller dens and bedrooms because it stays visually quiet under the TV and still gives you eARC control, speech enhancement, and optional Sub Mini expansion. For larger family rooms, Arc, Arc Ultra, or an Amp driving in-wall speakers gives the picture more appropriate scale.
If you are promising room tuning, be precise about Trueplay. Beam still relies on a supported iPhone or iPad for full Trueplay tuning, so do not write Android quick tuning into the closeout notes for this model.
Recommended Amazon Picks for a DIY Frame Install
Use a small set of exact Amazon picks for the TV, compact soundbar, recessed power kit, and certified HDMI cable. Conduit and enclosure sizing still depend on the wall, so we keep those in the planning section rather than forcing a generic product card.

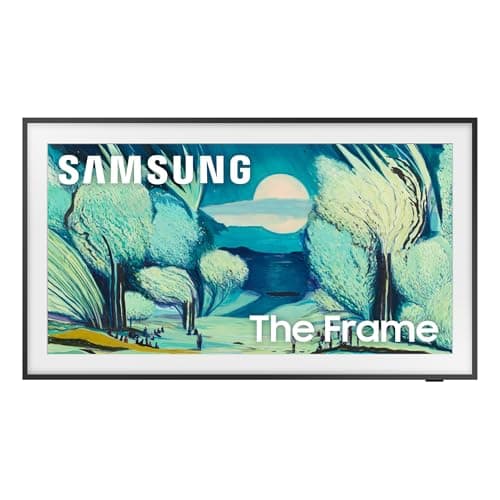

Samsung The Frame 2025 4K QLED TV
- Matte display finish to reduce reflections in bright rooms
- Slim Fit wall mount with near-flush profile
- One Connect box routes power and HDMI through a single cable
Sonos Beam (Gen 2) Compact Atmos Soundbar
- Virtualized Dolby Atmos with five-driver array
- HDMI eARC with CEC volume control
- Full Trueplay tuning requires a supported iPhone or iPad
Cable Matters Ultra High Speed HDMI Certified Cable, 2m
- Ultra High Speed HDMI certified for current HDMI 2.1 feature sets
- 2-meter length fits common TV-to-soundbar or TV-to-cabinet runs
- Supports 4K120, 8K60, VRR, and eARC when the rest of the chain is correct
DataComm Recessed Pro-Power Kit with Straight Blade Inlet
- Recessed in-wall power kit for cleaner TV installations
- Pairs line-voltage power relocation with a low-voltage cable path strategy
- Useful when the TV location needs a cleaner finish than a surface cord drop
Samsung The Frame vs Frame Pro vs LG OLED G6
Choose the standard Frame when you want the familiar wired One Connect workflow, choose Frame Pro when the room benefits from Wireless One Connect, and choose LG G6 when picture quality matters more than Samsung's art-first ecosystem.
The install differences matter more than the marketing names. Standard Frame remains the simpler recommendation when you want a repeatable conduit-and-enclosure plan. Frame Pro changes the planning conversation because the breakout box can connect wirelessly, but the TV and the box still need power and the wireless path should not be treated like magic if the room has cabinetry, metal, or heavy obstructions. LG's G6 gives you the stronger OLED picture, but it does not use a separate breakout box, so power and source planning happen directly at the display location.
| Model family | Connection approach | Best fit | Main install caution |
|---|---|---|---|
| Samsung The Frame | Wired One Connect box | Most clean-wall gallery installs that want a proven conduit path | Plan enclosure size, airflow, and service access early. |
| Samsung The Frame Pro | Wireless One Connect plus separate power at TV and box | Rooms where hiding source wiring is harder than providing power | Wireless performance depends on the room and should be validated before promising it. |
| LG OLED evo G6 | Inputs land directly at the display | Clients prioritizing OLED picture quality and flush wall design | There is no separate breakout box, so the wall needs direct power and source planning at the TV. |
Calibrate the Picture and Document the Finished System
Store day mode, night mode, input mapping, and recovery steps in the handoff package before the project is considered complete.
Run the TV after the room is furnished, not just after the bracket is tightened. Ambient light, nearby lamps, and the actual seating distance all affect whether the picture feels like art during the day and like a TV at night.
Document the installed cable path, One Connect box location, bezel finish, HDMI assignments, and the steps for returning to Art Mode after someone switches inputs. If the room includes audio or automation scenes, include those paths in the same quick-start sheet instead of scattering instructions between apps.
- Keep the One Connect cable part number and any spare bezel parts in the project file.
- Leave a laminated quick-start card near the remote stack for the next owner or service visit.
- Save photos of the wall before closure and after finish so future changes start with facts instead of guesses.
Common Mistakes That Make a Frame Install Look Wrong
- Mounting the screen too high for the primary seating position
- Hiding the One Connect box in an unventilated cavity or cabinet
- Skipping conduit and turning future cable replacement into wall repair
- Mixing bezel styles and surrounding frame styles without a wall composition plan
- Assuming a fireplace placement follows the same rules as a standard living-room wall
- Leaving eARC, CEC, and Art Mode recovery steps undocumented
Samsung Frame Install Checklist
- Confirm the exact Samsung model family before rough-in so standard Frame and Frame Pro are not wired the same way by mistake
- Install blocking and photograph the wall before drywall closes
- Run a serviceable conduit path for the One Connect cable on wired Frame installs
- Use recessed power and a ventilated enclosure or shelf for the One Connect box
- Set final screen height from the actual seating plan, not a generic wall center
- Calibrate day and night presets and document every connected source
FAQ
Do I need the Samsung One Connect box on the same wall as the TV?
No. The box can live in a nearby cabinet, rack, or recessed enclosure as long as the cable path stays protected, serviceable, and within Samsung's supported cable limits for the installed model.
Can I recess the Samsung One Connect box behind the TV?
Yes, but only if the enclosure is sized for the box, connectors, airflow, and future hand access. Tight boxes save wall depth but often make service harder.
Is Samsung Frame Pro installed the same way as the standard Frame?
No. Frame Pro changes the signal path because Wireless One Connect is only supported on that model family. You still need power at both the TV and the box, and you should validate the wireless environment before treating it as the final plan.
Is The Frame practical as an everyday TV?
Yes. It is still a normal Samsung TV with standard TV modes, inputs, and eARC behavior. The extra work is in the mounting, wiring, and Art Mode presentation.
Professional Installation Services
We handle the wall prep, power coordination, conduit planning, mounting, picture setup, audio integration, and closeout documentation so the finished wall looks deliberate and stays easy to service.
If you already have wall measurements, surrounding art dimensions, and a likely location for the One Connect box, we can turn that into a cleaner install plan quickly.
References
- Samsung US: The Frame highlights. Checked March 10, 2026.
- Samsung LS03D and LS03F install guide PDF. Checked March 10, 2026.
- Sonos Support: Trueplay-compatible devices and Sonos products. Checked March 10, 2026.
- Legrand: 17-inch dual-purpose enclosure ENP1700NA. Checked March 10, 2026.
- LG USA: 65-inch OLED evo G6. Checked March 10, 2026.
