Cat6 Cable Installation: Step‑by‑Step Guide (Updated 2025)

What this guide covers

This article provides a clear, step‑by‑step Cat6 cable installation guide for homes and small offices. It covers planning, tools and materials, safety and code basics, pulling techniques, terminations (RJ45, keystones, patch panels), testing and labeling, common mistakes, and practical upgrades such as Cat6A and multi‑gig links. Updated for September 2025, the guidance focuses on dependable results over hype.

• Networking & Infrastructure services

Cat6 at a glance (and when to choose Cat6A)

Cat6 supports 1 Gb/s at 100 m and up to 10 Gb/s over shorter distances (typically 37–55 m depending on the environment). It’s a solid default for most residential and small‑office runs. Cat6A adds tighter twist and separation for better crosstalk control, enabling 10 Gb/s up to 100 m with thicker cable and larger bend radius requirements. Use Cat6A for long uplinks, high‑interference spaces, or when you expect sustained multi‑gig traffic (2.5/5/10 Gb/s) across the LAN.

Planning: draw before you buy

Sketch your floor plan and mark where people sit and work, where streaming devices and TVs live, and where access points and cameras will mount. Identify a central rack or media panel with ventilation and reliable power. Plan home‑run cabling: each drop returns to the rack. Avoid daisy‑chaining through rooms. Confirm code requirements for cable jacket types (plenum/riser) and protection for penetrations.

• Home‑run each outlet to a central rack
• Prefer Cat6; choose Cat6A for long, noisy or multi‑gig critical links
• Reserve ceiling drops where access points will live
• Plan slack and service loops at both ends

Tools and materials

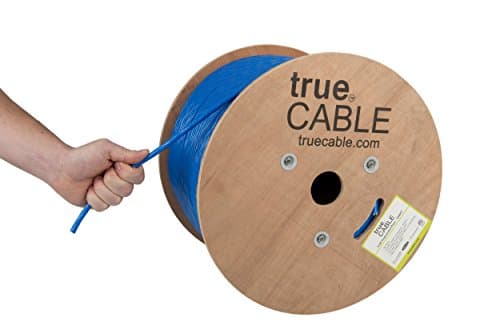

• Bulk Cat6 or Cat6A cable (solid copper, 23–24 AWG; avoid CCA)
• Keystone jacks and/or a patch panel (110‑style)
• RJ45 plugs (only if making patch leads; prefer keystones at walls)
• Wall plates and low‑voltage brackets
• Cable labels, a fine marker and a port legend sheet

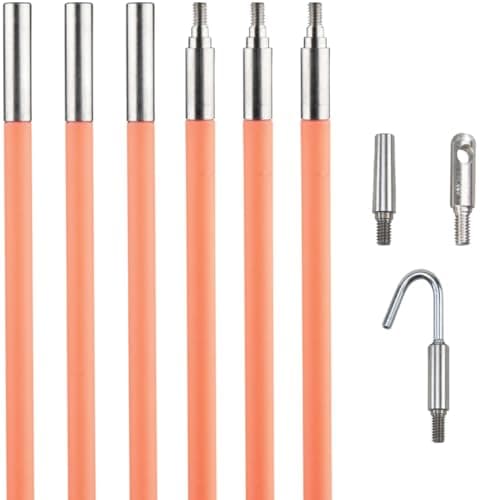

• Fish tape or rods, pull string, electrical tape
• Punch‑down tool with 110 blade; cable jacket stripper
• Cable cutter; flush cutters; torque screwdriver for panels
• Continuity tester as a minimum; certifier if available

Materials and specs at a glance

Safety and code basics

Turn off power near work areas. Use low‑voltage brackets; do not share electrical boxes. Respect fire stops and seal penetrations with appropriate fire‑rated materials when required. Use plenum or riser jacket per code. Maintain clearances from electrical wiring and avoid running parallel with AC mains over long distances.

Route choices and bend radius

Plan routes through basements, crawlspaces and closets where possible. When fishing walls, work from attics or basements to interior partitions first. Maintain bend radius: generally four times the cable diameter (check the manufacturer’s datasheet). Avoid tight staples; use cable staples or J‑hooks that do not pinch the jacket.

Pulling technique

Label both ends before you pull. Use a pull string and tape the cable end smoothly with no sharp edges. Pull steadily; avoid jerking. Keep multiple cables organized with a staggered bundle so the head stays slim. Do not exceed the cable’s maximum pull force (consult datasheet). Leave service loops at outlets and at the rack.

Wall fishing: practical tips

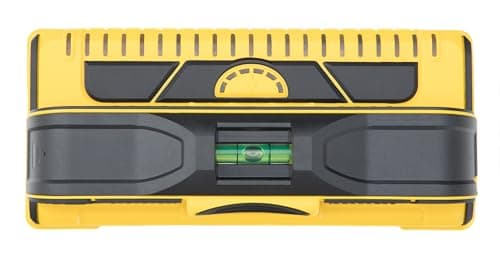

• Probe for studs and fire blocks; use flexible drill bits where needed
• Drop to low‑voltage brackets at a sensible height (e.g., 16–18 inches for desks, behind media furniture for TVs)
• Use a chain or weighted pull to find the opening if the cavity is tricky
• Protect cable from sharp edges with grommets or bushings

Terminations that last

For permanent links, terminate to keystone jacks at the wall and to a patch panel at the rack. Use T568B (common in the U.S.) or T568A consistently on both ends. Keep twists up to the contact as far as the jack allows, and avoid untwisting more than necessary. Use a punch‑down tool with a sharp 110 blade; verify seating and trim cleanly.

• Prefer keystone + patch panel for structured cabling
• Use RJ45 plugs mainly for custom patch leads, not in‑wall cable
• Maintain twist integrity right up to the termination

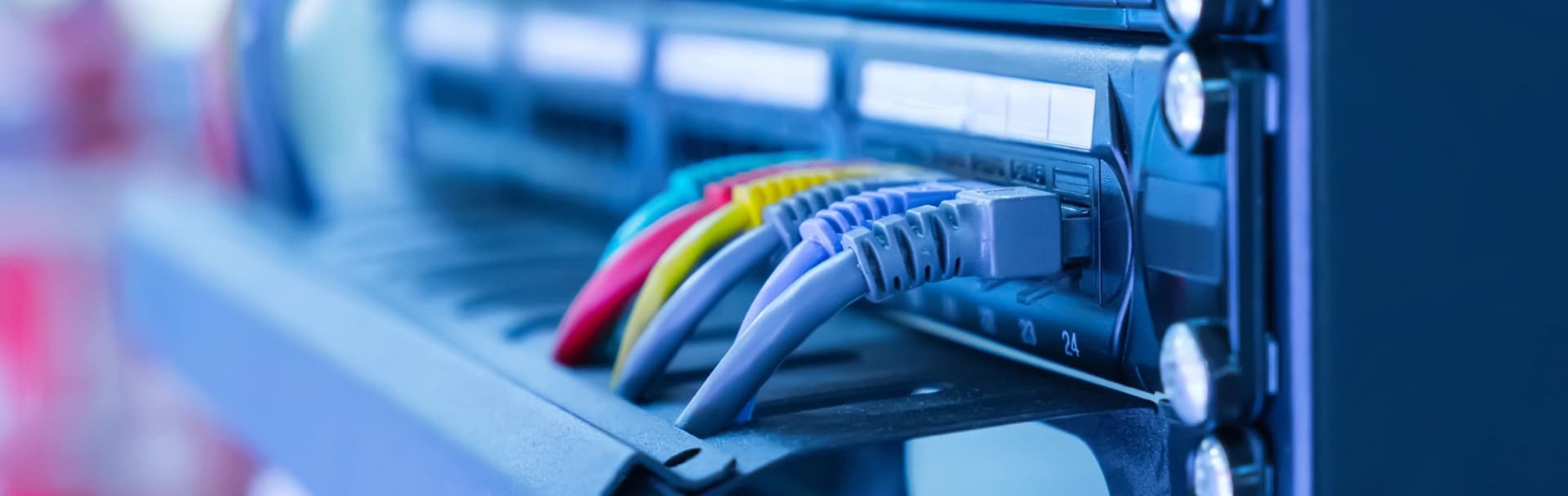

Patch panels and labeling

A tidy rack saves hours later. Land each home‑run on a patch panel. Label ports to room and wall plate position (e.g., Office‑N, Office‑S). Keep a laminated legend in the rack door. Use short patch leads, cable management and consistent color coding so anyone can follow the layout.

Testing and certification

At minimum, use a basic continuity tester to verify pinout, opens and shorts. If possible, use a certifier to validate performance to Cat6 or Cat6A — this catches subtle issues like excessive untwist or marginal crimps. Record results or at least note pass/fail per port on your legend.

PoE considerations (APs, cameras, doorbells)

Plan Power over Ethernet early: size the PoE switch with wattage headroom for access points, cameras and intercoms. Keep runs within 100 m including patch leads. For exterior devices, use outdoor‑rated cable and protect exterior runs with proper surge protection. Document device ports so future replacements are fast.

Common mistakes to avoid

• Using copper‑clad aluminum (CCA) instead of solid copper
• Over‑tight cable ties and crushed jackets
• Mixing 568A on one end and 568B on the other
• Long parallel runs next to AC mains
• Skipping labels and a port legend

Cat6 vs. Cat6A: choosing per run

Use Cat6 for typical room drops, TVs, printers and most desktops. Choose Cat6A for ceiling APs in large or noisy environments, uplinks between racks, and any run expected to carry stable 2.5/5/10 Gb/s traffic. Mixing categories in the same project is normal; document which ports are Cat6A so you can use the extra bandwidth where it matters.

Integration with media rooms and offices

Behind a TV or in a media wall, provide multiple drops: one for the TV, one for a streamer or console, and a spare. In small offices, provide two drops per desk cluster minimum, plus ceiling drops for access points placed based on people, not just square footage. For conference rooms, add table boxes with network and power to avoid draped cables.

Multi‑gig today (2.5/5 Gb/s) and 10 Gb/s where needed

Consumer and SMB switches now commonly include 2.5G ports at reasonable cost, ideal for modern access points and faster NAS. If you need 10G to a workstation or server, consider Cat6A for that specific run or use fiber for long distances and electrical isolation. Ensure your gateway and storage can actually use the throughput before upgrading everything.

Budget and timelines

Simple additions (a few drops, a patch panel tidy‑up) often complete in a day. Full pre‑wires or multi‑room retrofits take longer and may be phased to minimize disruption. Budget for proper terminations, a tester, cable management and labels — these are the details that make the system easy to live with.

Troubleshooting basics

• Failing link? Reseat keystone terminations and check untwist length
• Noise issues? Increase separation from AC and fluorescent fixtures
• Random drops? Verify bend radius and remove crushed cable ties
• PoE flakiness? Confirm switch wattage headroom and cable length

FAQs

Checklist

• Home‑run to a central rack; label ports and plates
• Use solid copper cable and respect bend radius
• Terminate to keystones and a patch panel (T568B or A consistently)
• Test links and note pass/fail on a legend
• Leave service loops and keep a tidy rack
